Evo 4-9 – 100mm RACE Series Intercooler -1400hp

AUD $1,925.00

Custom Product - Due to high demand please allow 4-6 weeks to manufacture this product.

Product Finish *

End tank Style

Outlet Style *

Model Vehicle *

Free Plazmaman Shirt

Free Plazmaman T-Shirt, available for website orders ONLY.

SKU: EVO79 RACE IC Categories: ,

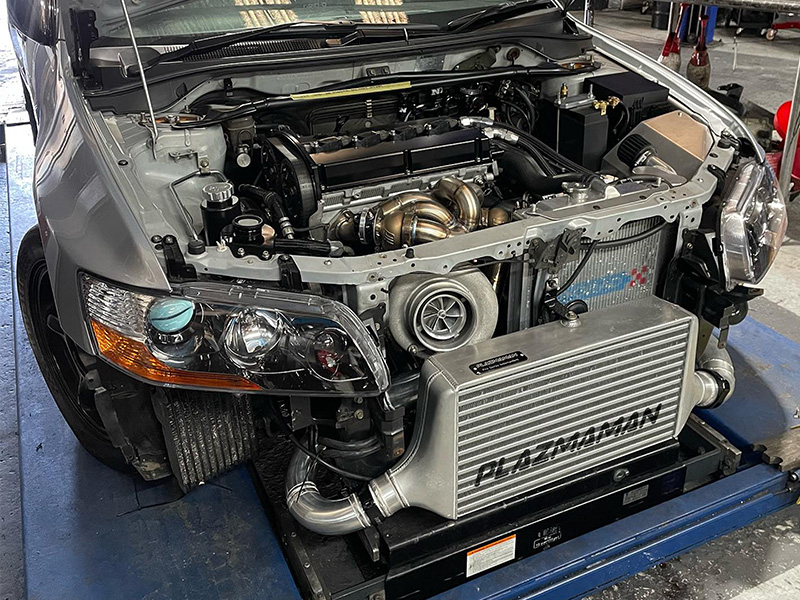

Mitsubishi EVO 7-9 making 1400+hp on Mick Motorsports hub dyno with this 100mm intercooler. <<<< Video Here


Standard Specifications;

  • 1000-1400hp+ Rated.
  • As Used on Micks Motorsports 1600hp, 75+ psi monster Evo.
  • For highly modified race style engine Evo Mitsubishi's.
  • Lightweight tube & fin core design or Bar and Plate Big boost core option.
  • Fast recovery time.
  • 530x300x100mm Race Spec core - 2 Options.
  • Fabricated bottom inlet/outlet end tanks, with 3.5″ (90mm) push-on hose style connection. Other options available.
  • Available in Raw, Black or Polished finish.
  • Please be aware that due to the larger 100mm core thickness, the end tanks are approximately 115mm in wide, some slight trimming might be required to fit depending on your model, but some sacrifices have to be made to flow genuine hp.
  • Please also be aware that some custom piping might have to be made to suit this Intercooler, or at lease some small modification to piping either side of the cooler outlets as a minimum.

Product Options;

  • This intercooler can be ordered with hose Style bottom inlet/outlet end tanks.
  • This intercooler can be ordered with Plazmaclamp assemblies.
  • We can build a completely custom end tank style – please Contact Us to discuss further options.

Additional information

Weight 12 kg
Dimensions 70 × 30 × 15 cm
